HFS Solid Angle Plate Set 30-60-90 & 45-45-90 Steel 2pcs

Description

Product Overview

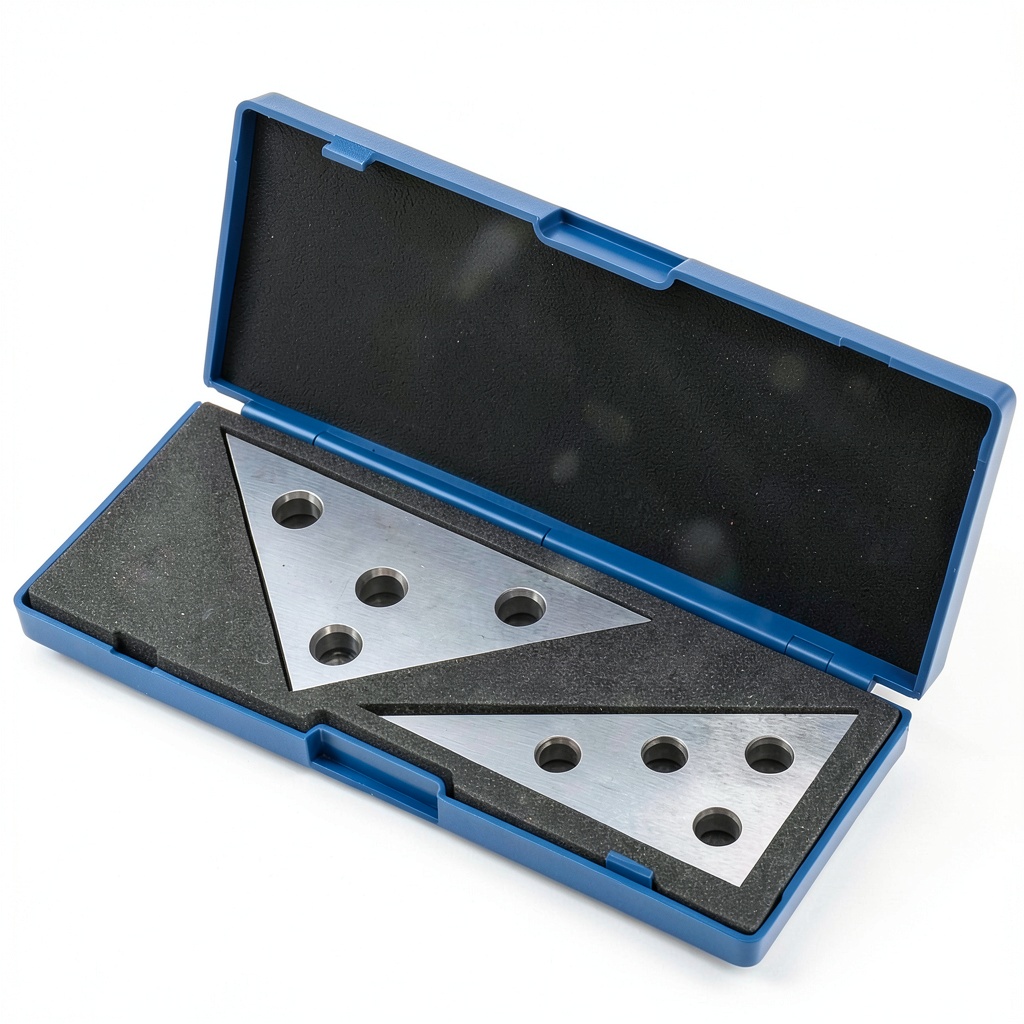

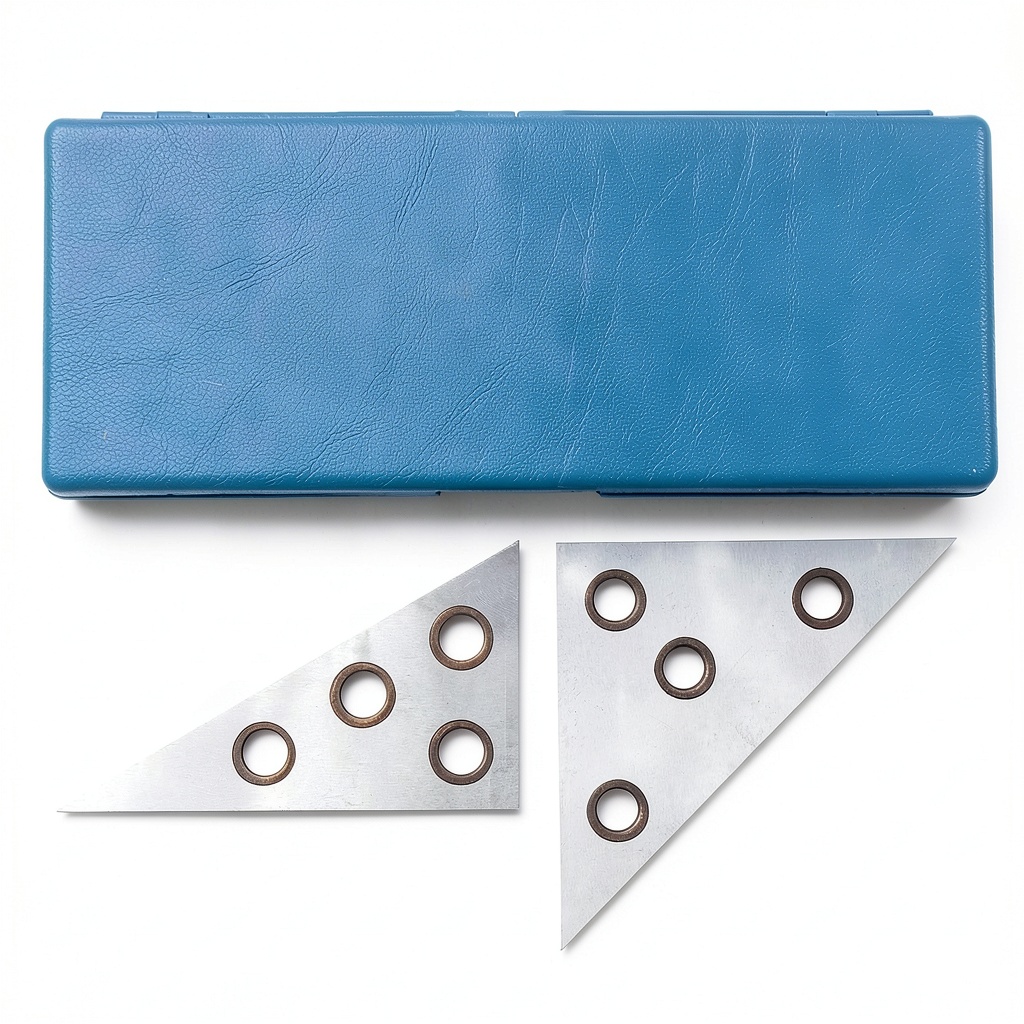

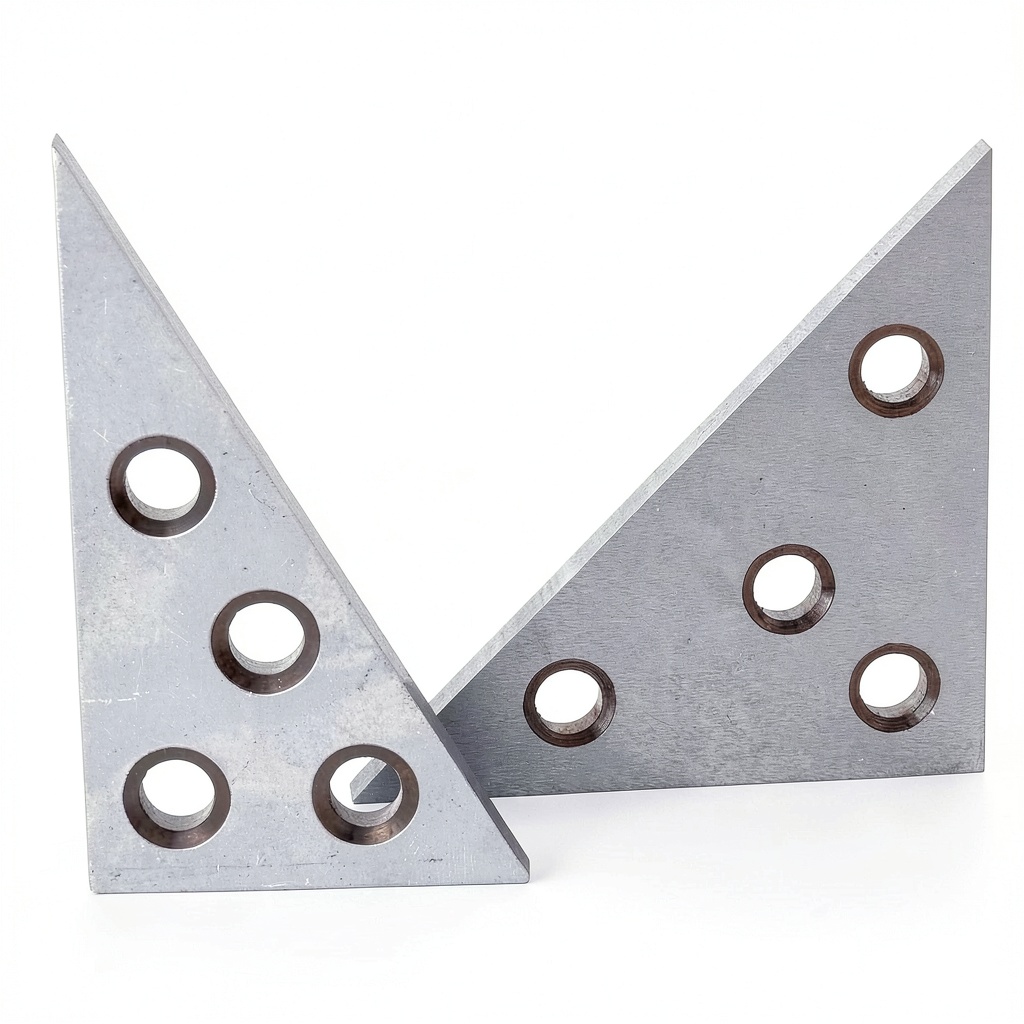

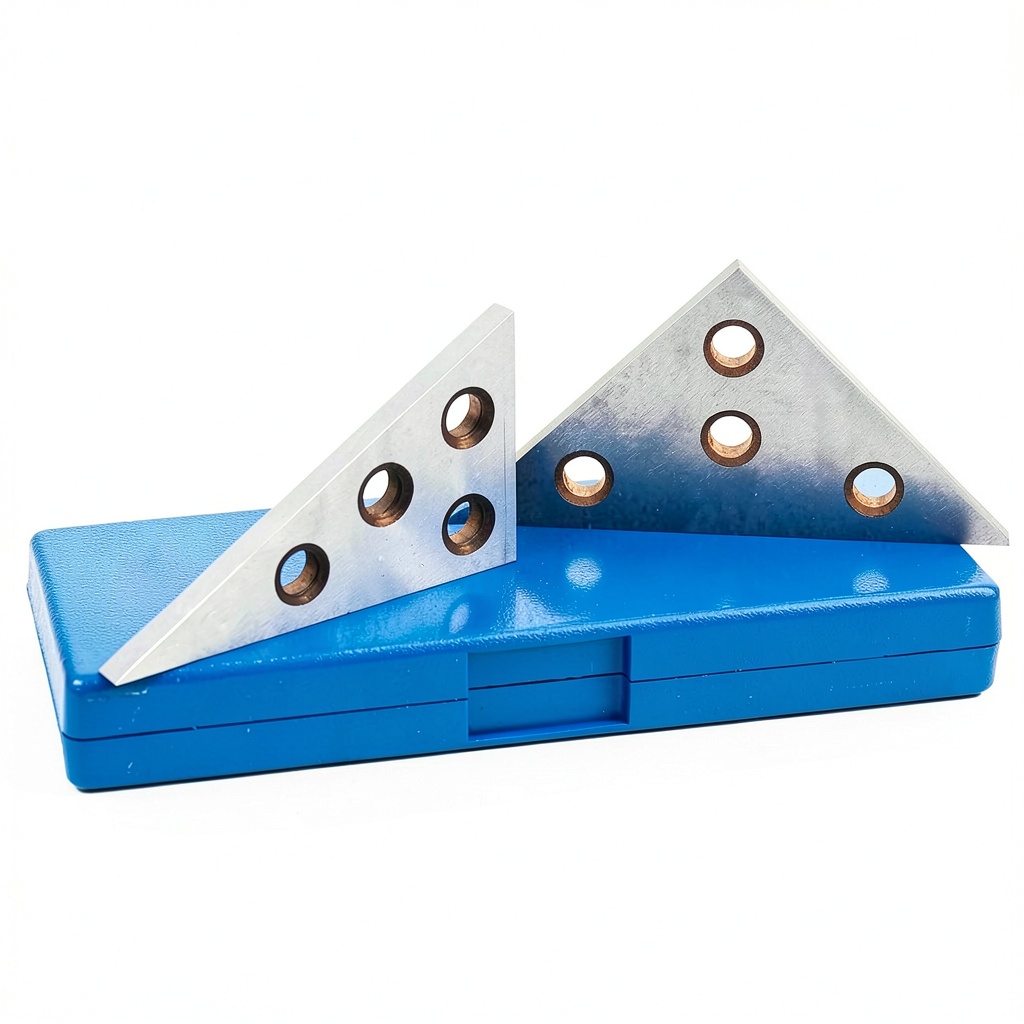

The HFS Solid Angle Plate Set is engineered for professionals who demand exacting precision in dimensional calibration and machining operations. Constructed from hardened steel, each plate undergoes a meticulous precision‑ground process that guarantees true angles of 30°‑60°‑90° and 45°‑45°‑90°. The plates measure 3″ x 3″ x 4‑3/8″ and 4″ x 3‑15/32″ x 2″ respectively, providing a compact yet robust solution for a wide range of applications. Four 11/32″ mounting holes are strategically placed on each plate, allowing for quick and secure attachment to worktables, vises, or other fixtures. The set is supplied in a durable plastic case that protects the plates during storage and transport, ensuring they remain ready for immediate use.

Usage

These angle plates excel in environments where exact angular positioning is critical. Whether you are calibrating CNC machines, setting up jig fixtures, or performing quality inspections on machined components, the HFS plates provide a reliable reference. The 30‑60‑90 plate is ideal for creating right‑angled assemblies and verifying trigonometric relationships, while the 45‑45‑90 plate simplifies the setup of symmetrical components and bisected angles. Their compact size makes them suitable for bench work, while the robust construction ensures they can withstand the rigors of industrial workshops, aerospace maintenance bays, and precision engineering labs.

Why Choose Us

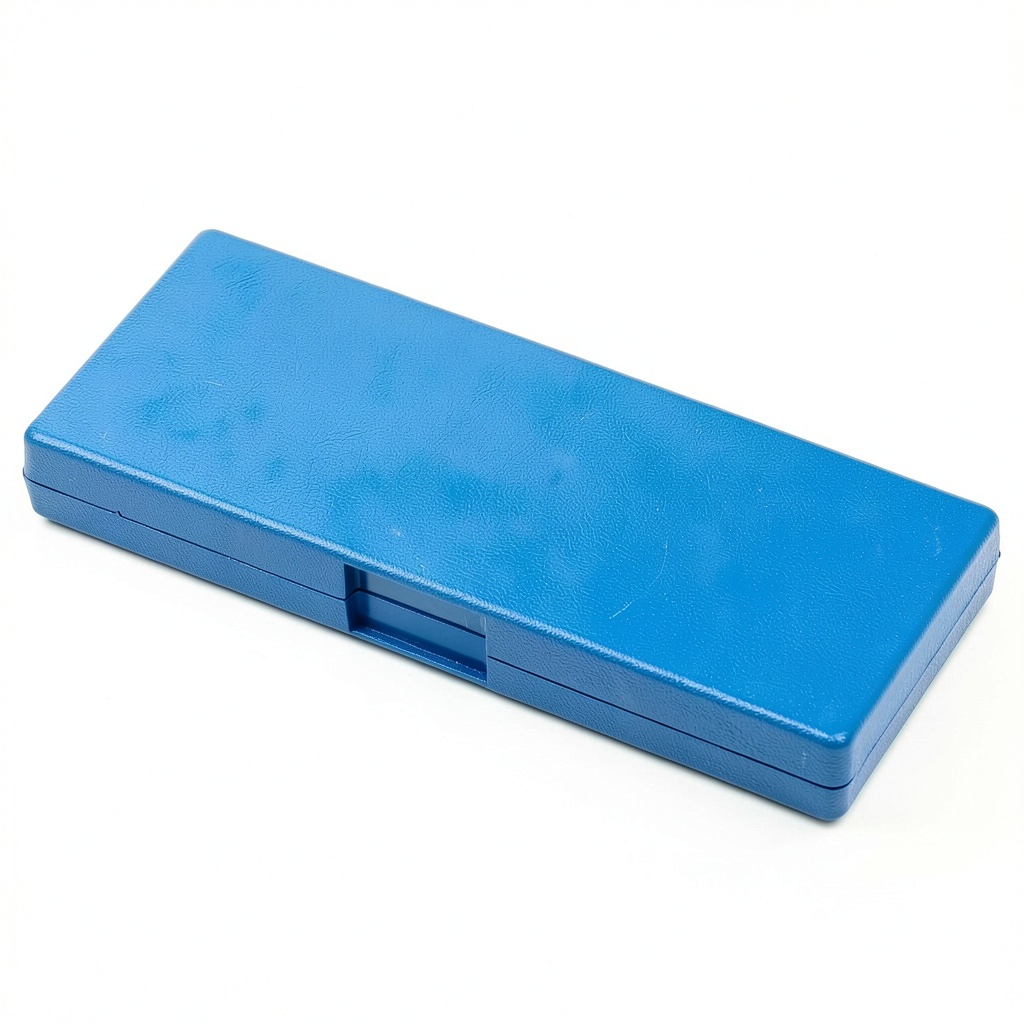

Choosing the HFS Solid Angle Plate Set means investing in durability, accuracy, and long‑term value. Hardened steel offers superior wear resistance compared to standard alloy plates, reducing the need for frequent re‑calibration. Each plate is individually inspected to meet strict tolerance standards, guaranteeing that the angles remain true over the lifespan of the product. The included plastic case not only protects the plates but also provides an organized storage solution, minimizing the risk of loss or damage. Backed by a responsive customer support team, HFS ensures that any questions or concerns are addressed promptly, reinforcing confidence in the purchase.

Key Features

• Hardened steel construction delivers exceptional durability and long‑term angle stability.
• Precision‑ground 30‑60‑90 and 45‑45‑90 angles enable accurate setup for a variety of machining tasks.
• Four 11/32″ mounting holes on each plate provide quick, secure attachment to workstations.
• Compact dimensions and protective plastic case make storage and transport effortless.
• Responsive after‑sales support ensures reliable assistance throughout the product’s life.

FAQ

What is the maximum load capacity for these angle plates?

The hardened steel plates are designed to support typical machining and inspection loads up to 150 lb per plate when properly mounted using the provided holes.

Can the plates be used with metric mounting hardware?

Yes, the 11/32″ (approximately 8.73 mm) holes are compatible with standard metric bolts and can be tapped to accommodate M8 or M10 fasteners if needed.

How do I maintain the precision of the angle plates over time?

Regularly clean the plates with a lint‑free cloth to remove debris, and store them in the supplied case when not in use. Avoid exposing the plates to corrosive chemicals, and periodically verify the angles with a calibrated angle gauge.

Are the plates suitable for use in temperature‑controlled environments?

Yes, the hardened steel maintains its dimensional stability across a wide temperature range, making it appropriate for both heated and chilled workshop conditions.

What warranty does HFS provide for this product?

The HFS Solid Angle Plate Set comes with a one‑year limited warranty covering manufacturing defects. Contact HFS customer service for warranty claims or replacement parts.
