Narex Precision Doweling Plate – Metric

Description

Product Overview

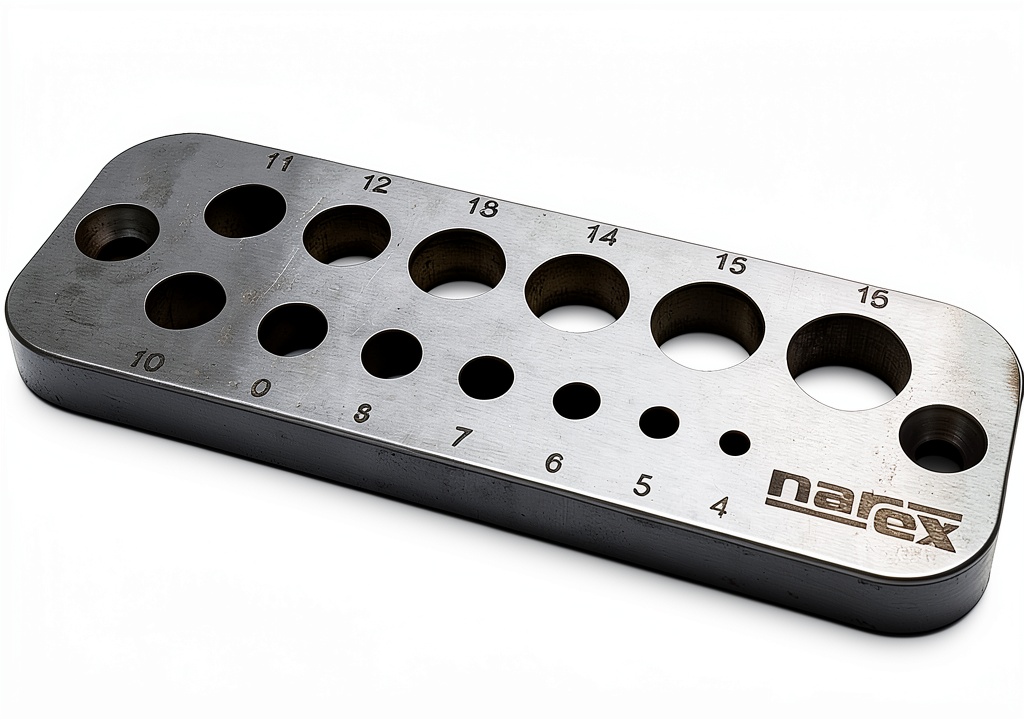

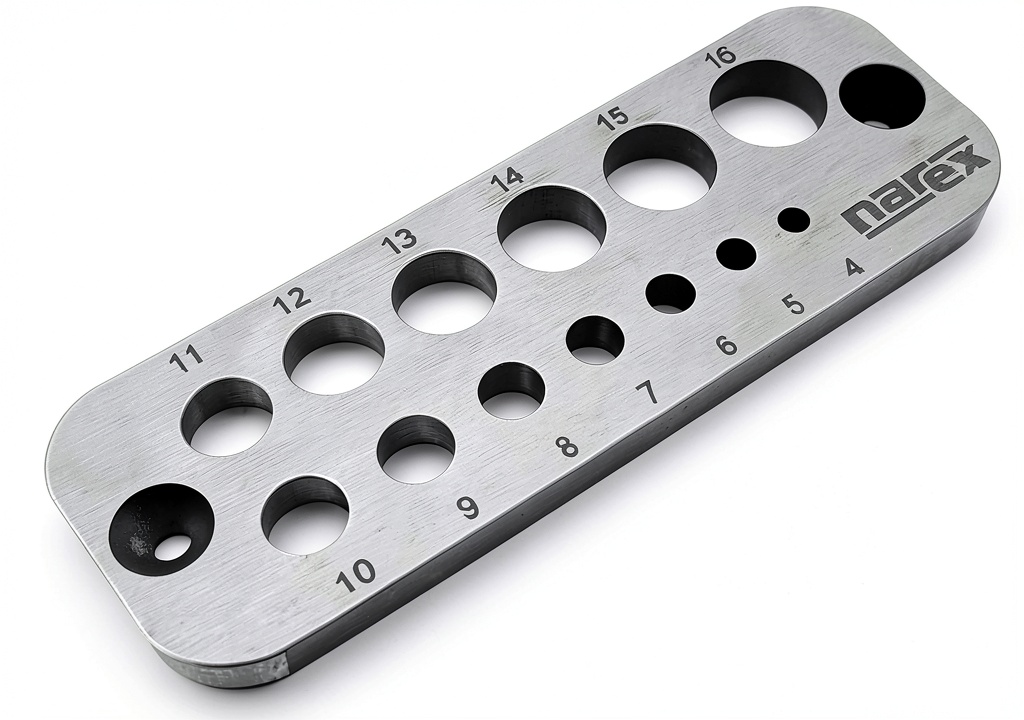

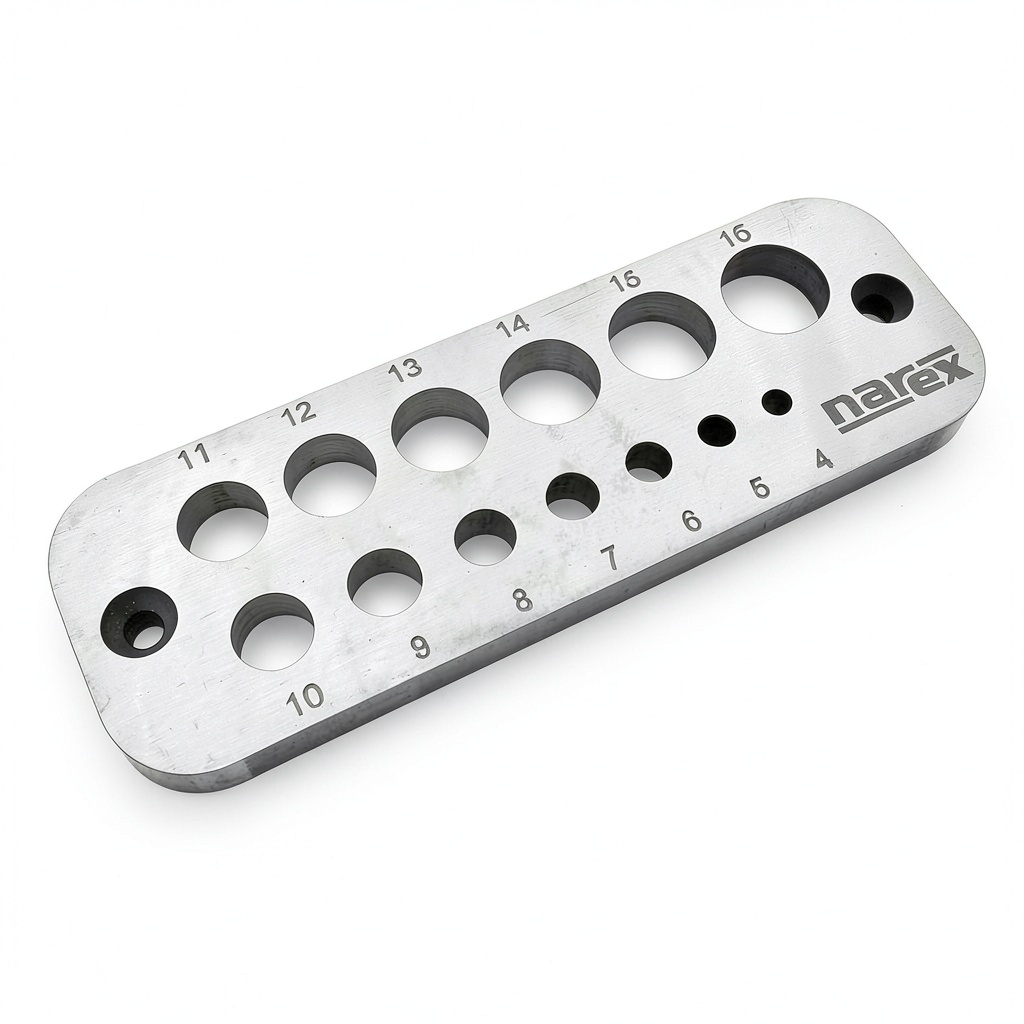

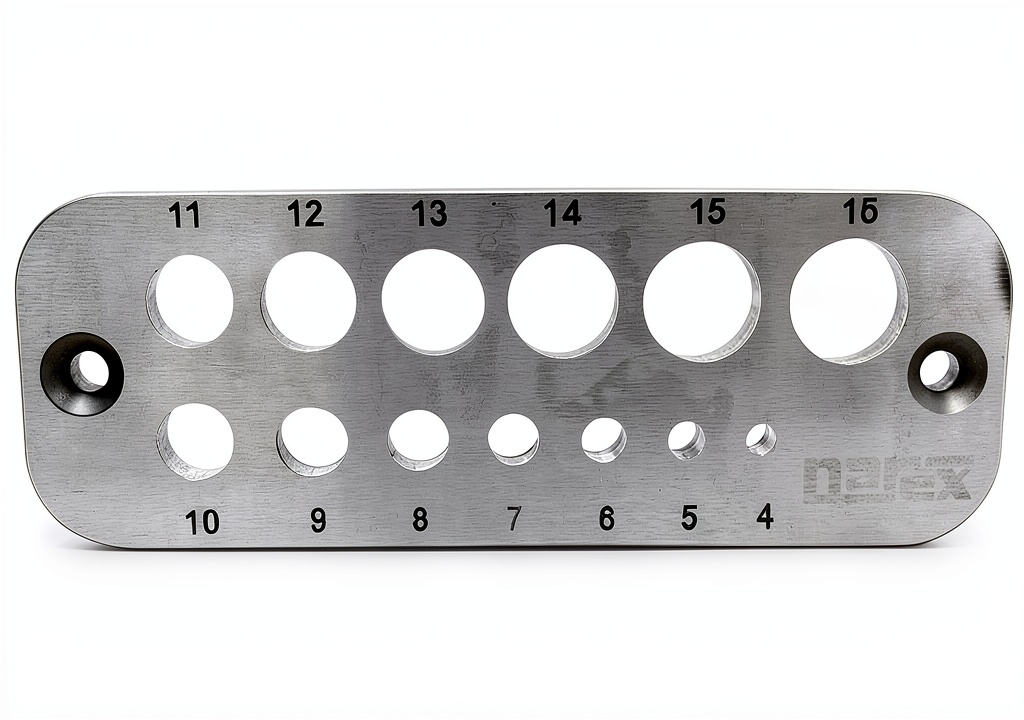

The Narex Precision Doweling Plate Metric is engineered for professionals who demand exacting dowel production in a compact, durable format. Constructed from .290 inch (7.4 mm) thick A2 tool steel, the plate is surface‑ground and heat‑treated to a hardness of HRC 61, delivering a wear‑resistant work surface that maintains its geometry even after thousands of passes. The plate measures 5.5 x 2.5 x 0.25 inches and weighs just 8.8 ounces, making it easy to transport between job sites while still providing the rigidity required for high‑precision machining.

Each of the doweling holes is precision‑machined with a slight taper on the underside to provide material relief, while the top edge is sharpened to create a clean shearing action that minimizes tear‑out. The design allows users to start with square stock of any hardwood, softwood, or engineered wood, hammer the stock through the plate, and emerge with perfectly sized dowels ready for assembly. The plate includes two countersunk mounting holes sized for #10 screws, ensuring a secure, vibration‑free installation on any flat work surface or bench vise.

Beyond its core functionality, the Narex doweling plate incorporates thoughtful details such as a clear, laser‑etched part number (872200) for quick identification, and a finish that resists corrosion and staining even in demanding shop environments. The product is listed as #12 in the Calibration Surface Plates category on Amazon, reflecting its acceptance among precision‑focused users. Whether you are a cabinetmaker, a repair technician, or a calibration specialist, this plate delivers repeatable, high‑quality dowels with minimal setup time.

Usage

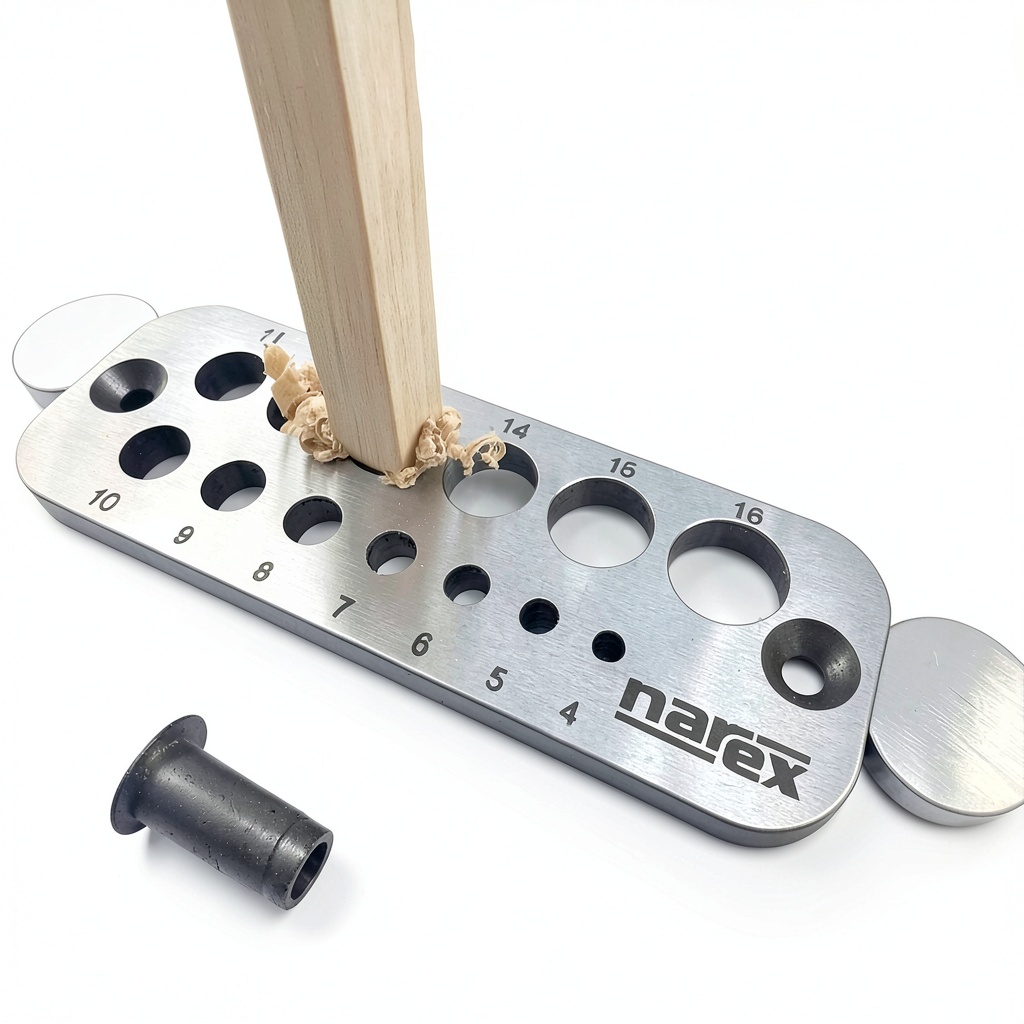

In a typical woodworking workshop, the doweling plate becomes the centerpiece of a dowel‑making station. Users place a piece of square stock on a stable bench, align it with the plate, and apply a controlled hammer strike. The tapered underside of each hole guides the wood into the cutting edge, producing dowels that are true to the intended diameter and length. Because the plate tolerates incremental material removal of no more than 1/32″ to 1/16″ per pass, craftsmen can achieve fine tolerances without over‑loading the steel.

Calibration laboratories benefit from the plate’s dimensional stability. The hardened steel maintains its flatness and hole geometry across temperature fluctuations, allowing technicians to generate reference dowels for equipment alignment, jig fabrication, and test piece creation. The plate’s compact size also makes it suitable for portable calibration kits, where space and weight are at a premium.

Beyond wood, the plate can be used with engineered composites, laminates, and even certain plastics, provided the material can be safely driven through the steel without excessive heat buildup. The two mounting holes enable the plate to be bolted to a bench vise, a dedicated doweling rig, or a custom fixture, giving users flexibility in how they integrate the tool into existing workflows. Whether you are producing dowels for furniture joinery, repairing a broken component, or creating precision test pieces, the Narex doweling plate offers a reliable, repeatable solution.

Why Choose Us

Narex has a long history of supplying high‑quality metrology and calibration equipment to industrial and scientific markets. This reputation extends to the Precision Doweling Plate, where rigorous manufacturing standards ensure each plate meets exacting tolerances. The use of A2 tool steel, a material known for its toughness and resistance to wear, guarantees that the plate will perform consistently over many years of heavy use.

Our commitment to quality is reflected in the plate’s heat‑treatment process, which achieves a hardness of HRC 61—far above the typical range for comparable doweling tools. This hardness not only extends the service life of the cutting edges but also reduces the frequency of resharpening, saving time and labor for busy professionals. Each plate undergoes a final surface‑grinding step to eliminate microscopic imperfections that could affect dowel geometry.

Customer support is a cornerstone of the Narex experience. Buyers receive access to a dedicated technical assistance line, detailed usage manuals, and online resources that cover everything from mounting techniques to optimal material removal strategies. Should any issue arise, our warranty and after‑sales service team are ready to provide prompt resolutions, ensuring that your investment remains productive throughout its lifespan.

In addition to the physical product, Narex offers a suite of complementary accessories, such as precision‑ground dowel cutters, alignment jigs, and calibration fixtures, allowing you to build a complete doweling system from a single trusted source. This ecosystem approach simplifies procurement, reduces compatibility concerns, and enhances overall workflow efficiency.

Key Features

• Durable .290″ A2 steel construction hardened to HRC 61 for long‑lasting performance.
• Precision‑machined tapered holes deliver smooth, clean dowel cuts with minimal tear‑out.
• Compact size and lightweight design make it easy to transport and set up on any workbench.
• Two #10 screw mounting holes provide a secure, vibration‑free installation for consistent results.
• Backed by Narex’s dedicated customer support and warranty for peace of mind.

FAQ

How do I securely mount the doweling plate?

Use the two pre‑drilled countersunk holes to attach the plate to a flat work surface or bench vise with #10 wood screws. Tighten the screws until the plate sits flush without any wobble, ensuring a stable platform for accurate dowel production.

What types of wood can I use with this plate?

The plate works with a wide range of wood species, including hardwoods like oak and maple, softwoods such as pine and spruce, and engineered products like plywood and MDF. The key is to select stock that is square and free of knots that could interfere with the cutting action.

How often will I need to resharpen the plate?

Thanks to the hardened A2 steel and the recommended incremental material removal of 1/32″ to 1/16″ per pass, the plate can produce thousands of dowels before the cutting edges begin to dull. Most users find that a simple sharpening after several hundred dowels restores optimal performance.

Can this plate be used for metric dowels only?

While the plate is marketed as a metric doweling solution, the precision‑machined holes can accommodate both metric and imperial dowel sizes, provided the stock is prepared to the appropriate dimensions. This flexibility makes the plate a versatile tool for mixed‑standard workshops.

Is the plate suitable for calibration purposes?

Yes. Its hardened steel construction maintains dimensional stability under temperature changes, making it ideal for generating reference dowels in calibration labs. The plate’s flatness and consistent hole geometry ensure that the dowels produced meet strict tolerance requirements.
