HHIP Cast Iron Angle Plate 2x2x2 Inch Pair Precision Machining Setup

Description

Product Overview

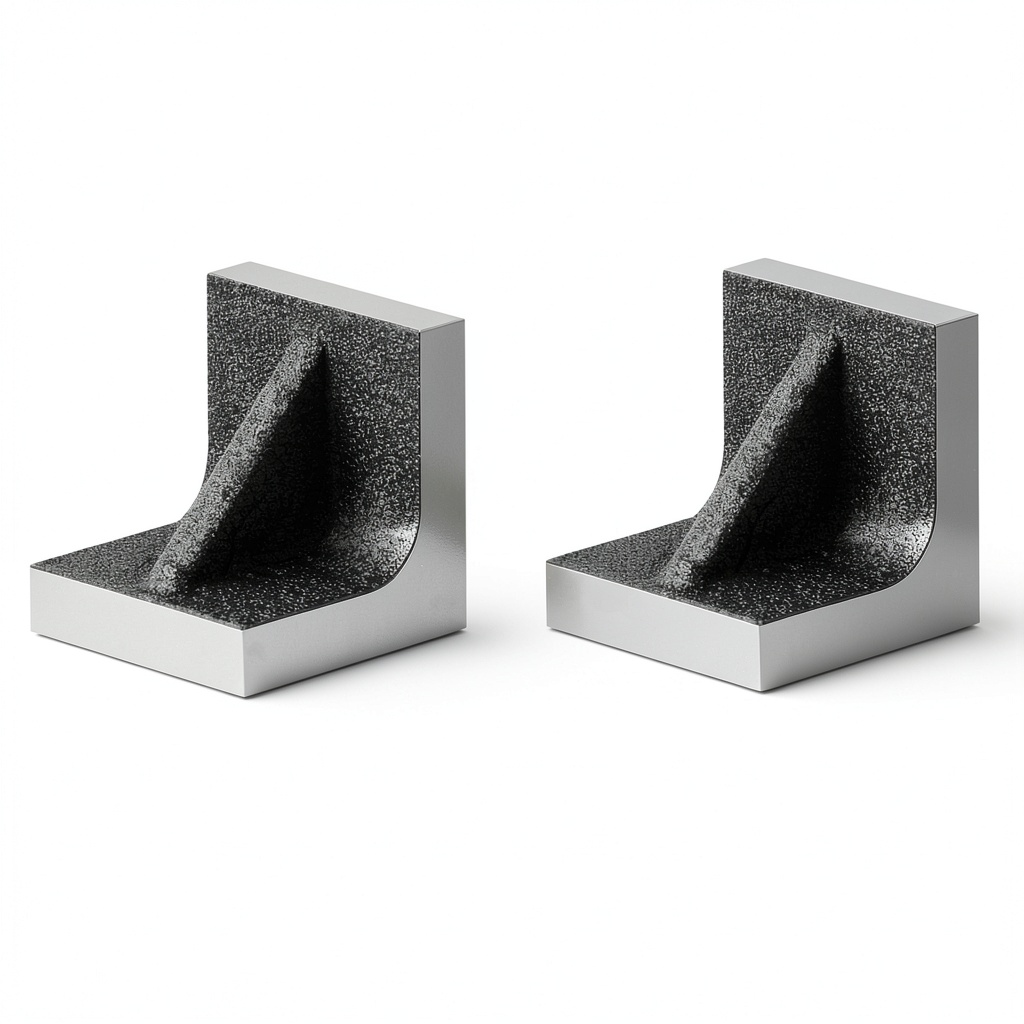

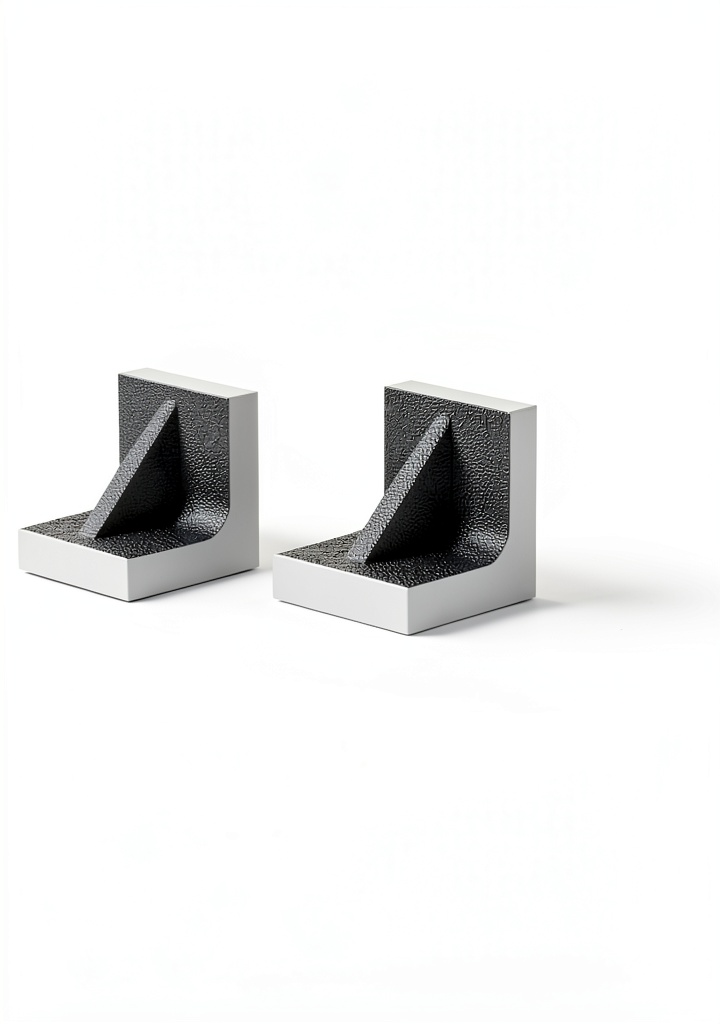

The HHIP solid cast iron angle plates are engineered as a matched pair measuring 2″ x 2″ x 2″. Crafted from high‑grade 20‑25 cast iron, each plate undergoes stress‑relief heat treatment and precision grinding to ensure dimensional stability and flatness over time. The non‑slotted, solid construction provides maximum rigidity, delivering true 90° angles for accurate workpiece positioning. With a weight of 2.15 pounds per plate, they are easy to handle yet robust enough for demanding machining and inspection tasks.

Usage

These angle plates are ideal for a variety of industrial applications, including milling, grinding, drilling, and layout work where precise squaring and positioning are critical. They serve as reliable fixtures in CNC setups, manual milling stations, and inspection rigs, helping technicians achieve repeatable results. The plates are also suitable for calibration surface plate applications, meeting the needs of laboratories and quality‑control environments.

Why Choose Us

HHIP combines decades of expertise in precision tooling with rigorous quality control processes. Each plate is inspected for flatness, angle accuracy, and surface finish before shipping. Our commitment to durability means the plates retain their geometry even after prolonged use, reducing the need for frequent recalibration. Additionally, HHIP offers responsive customer support and a straightforward return policy, ensuring confidence in every purchase.

Key Features

• High‑grade cast iron (grade 20‑25) provides exceptional stability and wear resistance.
• Stress‑relieved and precision‑ground to maintain true 90° angles over time.
• Solid, non‑slotted design maximizes rigidity for heavy machining loads.
• Compact 2″ x 2″ x 2″ size fits easily into most workstations while delivering strong support.
• Dedicated HHIP customer service team offers technical assistance and after‑sales support.

FAQ

Can these plates be used with CNC machines?

Yes, the plates are designed to integrate with CNC fixtures and provide a stable, accurate reference surface for automated machining operations.

What is the recommended cleaning method?

Wipe the surface with a lint‑free cloth and a mild solvent. Avoid abrasive cleaners that could damage the cast‑iron finish.

Do the plates come with a warranty?

HHIP offers a one‑year limited warranty covering material defects and workmanship.

Are the plates compatible with metric workpieces?

Absolutely. The plates provide a neutral reference surface, making them suitable for both imperial and metric setups.

How do I ensure the plates remain flat during use?

Place the plates on a clean, level surface and secure them with appropriate clamps. Periodic verification with a precision level or dial indicator is recommended for critical applications.
